Cisco で VRF + BGP を設定しつつ、RouteLeak で特定 VRF 間の経路だけ許可する

VRF を設定すると一台のルータのルーティングテーブルを論理的に分割して利用出来ます。これは「顧客ごとにルーティングテーブルを独立・分割して保持したい」という場合に便利です。別の表現をすると「異なる VRF 間では通信出来ない」とも言えます。しかし、「顧客ごとにルーティングテーブルは VRF で分割するものの、共通のサービス基盤は全ての顧客から参照させたい」というケースもあり得ます。こういった場合は RouteLeak の設定をすることで設定した VRF 間では通信を許可することが出来ます。

今回は VIRL 上の Cisco ルータで VRF を設定し、BGP で経路交換をさせつつ、「サービス基盤と顧客は通信出来る」「顧客同士は通信出来ない」という要件を満たすように RouteLeak 設定を行います。

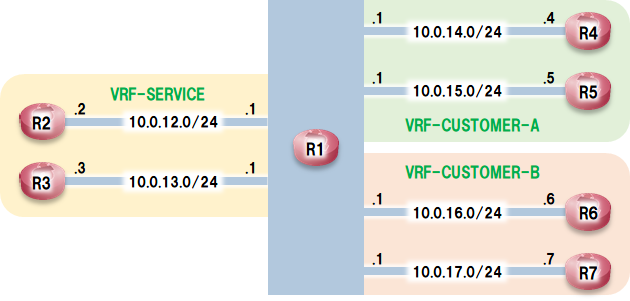

構成

構成は以下の通りです。ルータは全て Cisco IOSv 15.4(1)T を使いました。

file

コンフィグ

各ルータのコンフィグは以下の通りです。

R1 のコンフィグ

まず、以下の VRF を定義します。

VRF 名 RD Export RT Import RT 65001:1 Import RT 65001:2 Import RT 65001:3
VRF-SERVICE 65001:1 65001:1 ○ Imort × ×
VRF-CUSTOMER-A 65001:2 65001:2 × ○ Import ×
VRF-CUSTOMER-B 65001:3 65001:3 × × ○ Import

BGP の Neighbor 設定には as-override を指定します。これが無い場合、例えば VRF-CUSTOMER-A（AS65002）内の R2 と R3 の経路は「R2（AS65002）→ R1（AS65001）→ R3（AS65002）」となり、「AS65002 の経路が AS65002 に戻ってきた ＝ ループしている」とみなされ、経路が伝搬しません。これを避ける為、as-override で AS 番号を上書きしています。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
hostname R1
!
ip vrf VRF-SERVICE
 rd 65001:1
 route-target export 65001:1
 route-target import 65001:1
!
ip vrf VRF-CUSTOMER-A
 rd 65001:2
 route-target export 65001:2
 route-target import 65001:2
!
ip vrf VRF-CUSTOMER-B
 rd 65001:3
 route-target export 65001:3
 route-target import 65001:3
!
interface Loopback99
 ip address 10.0.99.1 255.255.255.255
!
interface Ethernet0/0
 ip vrf forwarding VRF-SERVICE
 ip address 10.0.12.1 255.255.255.0
 no shutdown
!
interface Ethernet0/1
 ip vrf forwarding VRF-SERVICE
 ip address 10.0.13.1 255.255.255.0
 no shutdown
!
interface Ethernet0/2
 ip vrf forwarding VRF-CUSTOMER-A
 ip address 10.0.14.1 255.255.255.0
 no shutdown
!
interface Ethernet0/3
 ip vrf forwarding VRF-CUSTOMER-A
 ip address 10.0.15.1 255.255.255.0
 no shutdown
!
interface Ethernet1/0
 ip vrf forwarding VRF-CUSTOMER-B
 ip address 10.0.16.1 255.255.255.0
 no shutdown
!
interface Ethernet1/1
 ip vrf forwarding VRF-CUSTOMER-B
 ip address 10.0.17.1 255.255.255.0
 no shutdown
!
router bgp 65000
 bgp log-neighbor-changes
 !
 address-family ipv4 vrf VRF-CUSTOMER-A
  bgp router-id 10.2.99.1
  neighbor 10.0.14.4 remote-as 65002
  neighbor 10.0.14.4 activate
  neighbor 10.0.14.4 as-override
  neighbor 10.0.15.5 remote-as 65002
  neighbor 10.0.15.5 activate
  neighbor 10.0.15.5 as-override
 exit-address-family
 !
 address-family ipv4 vrf VRF-CUSTOMER-B
  bgp router-id 10.3.99.1
  neighbor 10.0.16.6 remote-as 65003
  neighbor 10.0.16.6 activate
  neighbor 10.0.16.6 as-override
  neighbor 10.0.17.7 remote-as 65003
  neighbor 10.0.17.7 activate
  neighbor 10.0.17.7 as-override
 exit-address-family
 !
 address-family ipv4 vrf VRF-SERVICE
  bgp router-id 10.1.99.1
  neighbor 10.0.12.2 remote-as 65001
  neighbor 10.0.12.2 activate
  neighbor 10.0.12.2 as-override
  neighbor 10.0.13.3 remote-as 65001
  neighbor 10.0.13.3 activate
  neighbor 10.0.13.3 as-override
 exit-address-family
!
end

R2 のコンフィグ

R2 〜 R7 は「アドレス」「BGP の Neighbor」しか無い、簡素な設定です。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
hostname R2
!
interface Loopback99
 ip address 10.0.99.2 255.255.255.255
!
interface Ethernet0/0
 ip address 10.0.12.2 255.255.255.0
 no shutdown
!
router bgp 65001
 bgp router-id 10.0.99.2
 bgp log-neighbor-changes
 network 10.0.99.2 mask 255.255.255.255
 neighbor 10.0.12.1 remote-as 65000
!
end

R3 のコンフィグ

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
hostname R3
!
interface Loopback99
 ip address 10.0.99.3 255.255.255.255
!
interface Ethernet0/0
 ip address 10.0.13.3 255.255.255.0
 no shutdown
!
router bgp 65001
 bgp router-id 10.0.99.3
 bgp log-neighbor-changes
 network 10.0.99.3 mask 255.255.255.255
 neighbor 10.0.13.1 remote-as 65000
!
end

R4 のコンフィグ

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
hostname R4
!
interface Loopback99
 ip address 10.0.99.4 255.255.255.255
!
interface Ethernet0/0
 ip address 10.0.14.4 255.255.255.0
 no shutdown
!
router bgp 65002
 bgp router-id 10.0.99.4
 bgp log-neighbor-changes
 network 10.0.99.4 mask 255.255.255.255
 neighbor 10.0.14.1 remote-as 65000
!
end

R5 のコンフィグ

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
hostname R5
!
interface Loopback99
 ip address 10.0.99.5 255.255.255.255
!
interface Ethernet0/0
 ip address 10.0.15.5 255.255.255.0
 no shutdown
!
router bgp 65002
 bgp router-id 10.0.99.5
 bgp log-neighbor-changes
 network 10.0.99.5 mask 255.255.255.255
 neighbor 10.0.15.1 remote-as 65000
!
end

R6 のコンフィグ

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
hostname R6
!
interface Loopback99
 ip address 10.0.99.6 255.255.255.255
!
interface Ethernet0/0
 ip address 10.0.16.6 255.255.255.0
 no shutdown
!
router bgp 65003
 bgp router-id 10.0.99.6
 bgp log-neighbor-changes
 network 10.0.99.6 mask 255.255.255.255
 neighbor 10.0.16.1 remote-as 65000
!
end

R7 のコンフィグ

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
hostname R7
!
interface Loopback99
 ip address 10.0.99.7 255.255.255.255
!
interface Ethernet0/0
 ip address 10.0.17.7 255.255.255.0
 no shutdown
!
router bgp 65003
 bgp router-id 10.0.99.7
 bgp log-neighbor-changes
 network 10.0.99.7 mask 255.255.255.255
 neighbor 10.0.17.1 remote-as 65000
!
end

状態確認

R1 での確認

show ip vrf で VRF の定義状態を確認します。

1
2
3
4
5
6
7
8
R1# show ip vrf
  Name                             Default RD            Interfaces
  VRF-CUSTOMER-A                   65001:2               Et0/2
                                                         Et0/3
  VRF-CUSTOMER-B                   65001:3               Et1/0
                                                         Et1/1
  VRF-SERVICE                      65001:1               Et0/0
                                                         Et0/1

更に、show ip vrf detail で VRF の詳細状態を確認します。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
R1# show ip vrf detail
VRF VRF-CUSTOMER-A (VRF Id = 2); default RD 65001:2; default VPNID <not set>
  Old CLI format, supports IPv4 only
  Flags: 0xC
  Interfaces:
    Et0/2                    Et0/3
VRF Table ID = 2
  Flags: 0x0
  Export VPN route-target communities
    RT:65001:2
  Import VPN route-target communities
    RT:65001:2
  No import route-map
  No global export route-map
  No export route-map
  VRF label distribution protocol: not configured
  VRF label allocation mode: per-prefix

VRF VRF-CUSTOMER-B (VRF Id = 3); default RD 65001:3; default VPNID <not set>
  Old CLI format, supports IPv4 only
  Flags: 0xC
  Interfaces:
    Et1/0                    Et1/1
VRF Table ID = 3
  Flags: 0x0
  Export VPN route-target communities
    RT:65001:3
  Import VPN route-target communities
    RT:65001:3
  No import route-map
  No global export route-map
  No export route-map
  VRF label distribution protocol: not configured
  VRF label allocation mode: per-prefix

VRF VRF-SERVICE (VRF Id = 1); default RD 65001:1; default VPNID <not set>
  Old CLI format, supports IPv4 only
  Flags: 0xC
  Interfaces:
    Et0/0                    Et0/1
VRF Table ID = 1
  Flags: 0x0
  Export VPN route-target communities
    RT:65001:1
  Import VPN route-target communities
    RT:65001:1
  No import route-map
  No global export route-map
  No export route-map
  VRF label distribution protocol: not configured
  VRF label allocation mode: per-prefix

show bgp vpnv4 unicast vrf [VRF-NAME] summary で VRF ごとの BGP Neighbor 状態を確認していきます。VRF-SERVICE の状態は以下の通りです。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
R1# show bgp vpnv4 unicast vrf VRF-SERVICE summary
BGP router identifier 10.1.99.1, local AS number 65000
BGP table version is 7, main routing table version 7
2 network entries using 304 bytes of memory
2 path entries using 160 bytes of memory
6/3 BGP path/bestpath attribute entries using 912 bytes of memory
3 BGP AS-PATH entries using 72 bytes of memory
3 BGP extended community entries using 72 bytes of memory
0 BGP route-map cache entries using 0 bytes of memory
0 BGP filter-list cache entries using 0 bytes of memory
BGP using 1520 total bytes of memory
BGP activity 6/0 prefixes, 6/0 paths, scan interval 60 secs

Neighbor        V           AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd
10.0.12.2       4        65001      13      13        7    0    0 00:07:25        1
10.0.13.3       4        65001      12      13        7    0    0 00:07:26        1

VRF-CUSTOMER-A の状態は以下の通りです。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
R1# show bgp vpnv4 unicast vrf VRF-CUSTOMER-A summary
BGP router identifier 10.2.99.1, local AS number 65000
BGP table version is 7, main routing table version 7
2 network entries using 304 bytes of memory
2 path entries using 160 bytes of memory
6/3 BGP path/bestpath attribute entries using 912 bytes of memory
3 BGP AS-PATH entries using 72 bytes of memory
3 BGP extended community entries using 72 bytes of memory
0 BGP route-map cache entries using 0 bytes of memory
0 BGP filter-list cache entries using 0 bytes of memory
BGP using 1520 total bytes of memory
BGP activity 6/0 prefixes, 6/0 paths, scan interval 60 secs

Neighbor        V           AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd
10.0.14.4       4        65002      13      13        7    0    0 00:07:18        1
10.0.15.5       4        65002      12      13        7    0    0 00:07:19        1

VRF-CUSTOMER-B の状態は以下の通りです。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
R1# show bgp vpnv4 unicast vrf VRF-CUSTOMER-B summary
BGP router identifier 10.3.99.1, local AS number 65000
BGP table version is 7, main routing table version 7
2 network entries using 304 bytes of memory
2 path entries using 160 bytes of memory
6/3 BGP path/bestpath attribute entries using 912 bytes of memory
3 BGP AS-PATH entries using 72 bytes of memory
3 BGP extended community entries using 72 bytes of memory
0 BGP route-map cache entries using 0 bytes of memory
0 BGP filter-list cache entries using 0 bytes of memory
BGP using 1520 total bytes of memory
BGP activity 6/0 prefixes, 6/0 paths, scan interval 60 secs

Neighbor        V           AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd
10.0.16.6       4        65003      13      13        7    0    0 00:07:24        1
10.0.17.7       4        65003      12      12        7    0    0 00:07:24        1

VRF-SERVICE での状態確認

R2 での確認

R1 で VRF 設定されている為、顧客（VRF-CUSTOMER-A / B）の経路は見えません。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
R2# show ip bgp
BGP table version is 27, local router ID is 10.0.99.2
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *   10.0.99.2/32     10.0.12.1                              0 65000 65000 i
 *>                   0.0.0.0                  0         32768 i
 *>  10.0.99.3/32     10.0.12.1                              0 65000 65000 i

R3 での確認

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
R3# show ip bgp
BGP table version is 27, local router ID is 10.0.99.3
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *>  10.0.99.2/32     10.0.13.1                              0 65000 65000 i
 *   10.0.99.3/32     10.0.13.1                              0 65000 65000 i
 *>                   0.0.0.0                  0         32768 i

VRF-CUSTOMER-A での状態確認

R4 での確認

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
R4# show ip bgp
BGP table version is 19, local router ID is 10.0.99.4
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *   10.0.99.4/32     10.0.14.1                              0 65000 65000 i
 *>                   0.0.0.0                  0         32768 i
 *>  10.0.99.5/32     10.0.14.1                              0 65000 65000 i

R5 での確認

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
R5# show ip bgp
BGP table version is 19, local router ID is 10.0.99.5
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *>  10.0.99.4/32     10.0.15.1                              0 65000 65000 i
 *   10.0.99.5/32     10.0.15.1                              0 65000 65000 i
 *>                   0.0.0.0                  0         32768 i

VRF-CUSTOMER-B での状態確認

R6 での確認

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
R6# show ip bgp
BGP table version is 19, local router ID is 10.0.99.6
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *   10.0.99.6/32     10.0.16.1                              0 65000 65000 i
 *>                   0.0.0.0                  0         32768 i
 *>  10.0.99.7/32     10.0.16.1                              0 65000 65000 i

R7 での確認

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
R7# show ip bgp
BGP table version is 19, local router ID is 10.0.99.7
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *>  10.0.99.6/32     10.0.17.1                              0 65000 65000 i
 *   10.0.99.7/32     10.0.17.1                              0 65000 65000 i
 *>                   0.0.0.0                  0         32768 i

RouteLeak の設定

以下の要件に添って設定していきます。

  1. サービス基盤（VRF-SERVICE）と顧客（VRF-CUSTOMER-A / B）は通信許可
  2. 顧客同士は通信拒否

この要件を満たす為には VRF の設定を以下のように修正します。赤字が修正箇所です。

VRF 名 RD Export RT Import RT 65001:1 Import RT 65001:2 Import RT 65001:3
VRF-SERVICE 65001:1 65001:1 ○ Import ○ Import ○ Import
VRF-CUSTOMER-A 65001:2 65001:2 ○ Import ○ Import ×
VRF-CUSTOMER-B 65001:3 65001:3 ○ Import × ○ Import

R1 に以下を設定し、この要件を反映します。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
ip vrf VRF-SERVICE
 route-target import 65001:2
 route-target import 65001:3
!
ip vrf VRF-CUSTOMER-A
 route-target import 65001:1
!
ip vrf VRF-CUSTOMER-B
 route-target import 65001:1
!
end

状態確認

R1 での状態確認

show ip vrf で確認する限り、変化は無いように見えます。

1
2
3
4
5
6
7
8
R1# show ip vrf
  Name                             Default RD            Interfaces
  VRF-CUSTOMER-A                   65001:2               Et0/2
                                                         Et0/3
  VRF-CUSTOMER-B                   65001:3               Et1/0
                                                         Et1/1
  VRF-SERVICE                      65001:1               Et0/0
                                                         Et0/1

show ip vrf detail では追加設定した通りに「Import VPN route-target communities」が増えていることが分かります。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
R1# show ip vrf detail
VRF VRF-CUSTOMER-A (VRF Id = 2); default RD 65001:2; default VPNID <not set>
  Old CLI format, supports IPv4 only
  Flags: 0xC
  Interfaces:
    Et0/2                    Et0/3
VRF Table ID = 2
  Flags: 0x0
  Export VPN route-target communities
    RT:65001:2
  Import VPN route-target communities
    RT:65001:2               RT:65001:1
  No import route-map
  No global export route-map
  No export route-map
  VRF label distribution protocol: not configured
  VRF label allocation mode: per-prefix

VRF VRF-CUSTOMER-B (VRF Id = 3); default RD 65001:3; default VPNID <not set>
  Old CLI format, supports IPv4 only
  Flags: 0xC
  Interfaces:
    Et1/0                    Et1/1
VRF Table ID = 3
  Flags: 0x0
  Export VPN route-target communities
    RT:65001:3
  Import VPN route-target communities
    RT:65001:3               RT:65001:1
  No import route-map
  No global export route-map
  No export route-map
  VRF label distribution protocol: not configured
  VRF label allocation mode: per-prefix

VRF VRF-SERVICE (VRF Id = 1); default RD 65001:1; default VPNID <not set>
  Old CLI format, supports IPv4 only
  Flags: 0xC
  Interfaces:
    Et0/0                    Et0/1
VRF Table ID = 1
  Flags: 0x0
  Export VPN route-target communities
    RT:65001:1
  Import VPN route-target communities
    RT:65001:1               RT:65001:2               RT:65001:3
  No import route-map
  No global export route-map
  No export route-map
  VRF label distribution protocol: not configured
  VRF label allocation mode: per-prefix

VRF-SERVICE での状態確認

R2 での確認

VRF-CUSTOMER-A（RT：65001:2）と VRF-CUSTOMER-B（RT：65001:3）を Import したことにより、Import した VRF の経路を学習していることが分かります。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
R2# show ip bgp
BGP table version is 37, local router ID is 10.0.99.2
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *   10.0.99.2/32     10.0.12.1                              0 65000 65000 i
 *>                   0.0.0.0                  0         32768 i
 *>  10.0.99.3/32     10.0.12.1                              0 65000 65000 i
 *>  10.0.99.4/32     10.0.12.1                              0 65000 65002 i
 *>  10.0.99.5/32     10.0.12.1                              0 65000 65002 i
 *>  10.0.99.6/32     10.0.12.1                              0 65000 65003 i
 *>  10.0.99.7/32     10.0.12.1                              0 65000 65003 i

R3 での確認

R3 も同様です。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
R3# show ip bgp
BGP table version is 37, local router ID is 10.0.99.3
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *>  10.0.99.2/32     10.0.13.1                              0 65000 65000 i
 *   10.0.99.3/32     10.0.13.1                              0 65000 65000 i
 *>                   0.0.0.0                  0         32768 i
 *>  10.0.99.4/32     10.0.13.1                              0 65000 65002 i
 *>  10.0.99.5/32     10.0.13.1                              0 65000 65002 i
 *>  10.0.99.6/32     10.0.13.1                              0 65000 65003 i
 *>  10.0.99.7/32     10.0.13.1                              0 65000 65003 i

VRF-CUSTOMER-A での状態確認

R4 での確認

Import した VRF-SERVICE（RT：65001:1）の経路 "だけ" が増えています。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
R4# show ip bgp
BGP table version is 31, local router ID is 10.0.99.4
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *>  10.0.99.2/32     10.0.14.1                              0 65000 65001 i
 *>  10.0.99.3/32     10.0.14.1                              0 65000 65001 i
 *   10.0.99.4/32     10.0.14.1                              0 65000 65000 i
 *>                   0.0.0.0                  0         32768 i
 *>  10.0.99.5/32     10.0.14.1                              0 65000 65000 i

R5 での確認

R4 同様です。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
R5# show ip bgp
BGP table version is 31, local router ID is 10.0.99.5
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *>  10.0.99.2/32     10.0.15.1                              0 65000 65001 i
 *>  10.0.99.3/32     10.0.15.1                              0 65000 65001 i
 *>  10.0.99.4/32     10.0.15.1                              0 65000 65000 i
 *   10.0.99.5/32     10.0.15.1                              0 65000 65000 i
 *>                   0.0.0.0                  0         32768 i

VRF-CUSTOMER-B での状態確認

R6 での確認

Import した VRF-SERVICE（RT：65001:1）の経路 "だけ" が増えています。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
R6# show ip bgp
BGP table version is 27, local router ID is 10.0.99.6
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *>  10.0.99.2/32     10.0.16.1                              0 65000 65001 i
 *>  10.0.99.3/32     10.0.16.1                              0 65000 65001 i
 *   10.0.99.6/32     10.0.16.1                              0 65000 65000 i
 *>                   0.0.0.0                  0         32768 i
 *>  10.0.99.7/32     10.0.16.1                              0 65000 65000 i

R7 での確認

R6 同様です。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
R7# show ip bgp
BGP table version is 27, local router ID is 10.0.99.7
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,
              x best-external, a additional-path, c RIB-compressed,
Origin codes: i - IGP, e - EGP, ? - incomplete
RPKI validation codes: V valid, I invalid, N Not found

     Network          Next Hop            Metric LocPrf Weight Path
 *>  10.0.99.2/32     10.0.17.1                              0 65000 65001 i
 *>  10.0.99.3/32     10.0.17.1                              0 65000 65001 i
 *>  10.0.99.6/32     10.0.17.1                              0 65000 65000 i
 *   10.0.99.7/32     10.0.17.1                              0 65000 65000 i
 *>                   0.0.0.0                  0         32768 i

通信確認

Ping で疎通確認してみます。連番宛の連続 Ping は tclsh からワンライナーで書くことが出来ます。10.0.0.1 〜 10.0.0.2 まで順番に 1 発ずつ Ping するのであれば、以下のようになります。

1
2
3
4
5
6
7
Router# tclsh
Router(tcl)# for {set i 1} {$i <= 10} {incr i} {ping ip 10.0.0.$i repeat 1}
    ・
    ・
    ・
Router(tcl)# tclquit
Router#

VRF-SERVICE での状態確認（R2）

VRF-CUSTOMER-A と VRF-CUSTOMER-B の両方を Import しているので、全てのルータに Ping が飛びます。

宛先 VRF OK / NG
R2 VRF-SERVICE OK
R3 VRF-SERVICE OK
R4 VRF-CUSTOMER-A OK
R5 VRF-CUSTOMER-A OK
R6 VRF-CUSTOMER-B OK
R7 VRF-CUSTOMER-B OK

具体的な実行結果は以下の通りです。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
R2# tclsh
R2(tcl)# for {set i 2} {$i <= 7} {incr i} {ping ip 10.0.99.$i repeat 1 source Loopback99}
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.2, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.2
!
Success rate is 100 percent (1/1), round-trip min/avg/max = 1/1/1 ms
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.3, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.2
!
Success rate is 100 percent (1/1), round-trip min/avg/max = 2/2/2 ms
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.4, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.2
!
Success rate is 100 percent (1/1), round-trip min/avg/max = 1/1/1 ms
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.5, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.2
!
Success rate is 100 percent (1/1), round-trip min/avg/max = 1/1/1 ms
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.6, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.2
!
Success rate is 100 percent (1/1), round-trip min/avg/max = 2/2/2 ms
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.7, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.2
!
Success rate is 100 percent (1/1), round-trip min/avg/max = 2/2/2 ms

VRF-CUSTOMER-A での状態確認（R4）

VRF-SERVICE を Import しているので VRF-SERVICE には Ping が飛びますが、VRF-CUSTOMER-B には Ping が飛びません。

宛先 VRF OK / NG
R2 VRF-SERVICE OK
R3 VRF-SERVICE OK
R4 VRF-CUSTOMER-A OK
R5 VRF-CUSTOMER-A OK
R6 VRF-CUSTOMER-B NG
R7 VRF-CUSTOMER-B NG

実行結果は以下の通りです。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
R4# tclsh
R4(tcl)#$ 7} {incr i} {ping ip 10.0.99.$i repeat 1 source Loopback99}
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.2, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.4
!
Success rate is 100 percent (1/1), round-trip min/avg/max = 2/2/2 ms
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.3, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.4
!
Success rate is 100 percent (1/1), round-trip min/avg/max = 1/1/1 ms
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.4, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.4
!
Success rate is 100 percent (1/1), round-trip min/avg/max = 1/1/1 ms
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.5, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.4
!
Success rate is 100 percent (1/1), round-trip min/avg/max = 1/1/1 ms
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.6, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.4
.
Success rate is 0 percent (0/1)
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.7, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.4
.
Success rate is 0 percent (0/1)

VRF-CUSTOMER-B での状態確認（R6）

VRF-SERVICE を Import しているので VRF-SERVICE には Ping が飛びますが、VRF-CUSTOMER-A には Ping が飛びません。

宛先 VRF OK / NG
R2 VRF-SERVICE OK
R3 VRF-SERVICE OK
R4 VRF-CUSTOMER-A NG
R5 VRF-CUSTOMER-A NG
R6 VRF-CUSTOMER-B OK
R7 VRF-CUSTOMER-B OK

実行結果は以下の通りです。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
R6# tclsh
R6(tcl)#$ 7} {incr i} {ping ip 10.0.99.$i repeat 1 source Loopback99}
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.2, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.6
!
Success rate is 100 percent (1/1), round-trip min/avg/max = 1/1/1 ms
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.3, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.6
!
Success rate is 100 percent (1/1), round-trip min/avg/max = 1/1/1 ms
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.4, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.6
.
Success rate is 0 percent (0/1)
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.5, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.6
.
Success rate is 0 percent (0/1)
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.6, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.6
!
Success rate is 100 percent (1/1), round-trip min/avg/max = 5/5/5 ms
Type escape sequence to abort.
Sending 1, 100-byte ICMP Echos to 10.0.99.7, timeout is 2 seconds:
Packet sent with a source address of 10.0.99.6
!
Success rate is 100 percent (1/1), round-trip min/avg/max = 1/1/1 ms
