CMLのSupplemental ISOが再公開される
昨日、CMLのリファレンスプラットフォーム(2025/07/18)がリリースされるも、一部取り下げというメモを書きました。このメモを公開した後でCML 2.9.0のリリースページに以下のメッセージが追記されていました。
The supplemental reference platform ISO is not currently available for download. There was a delay in posting that file. The original refplat-20250718-supplemental-iso.zip that we posted was corrupted during upload and should not be used. We will publish a new, corrected supplemental reference platform ISO soon.

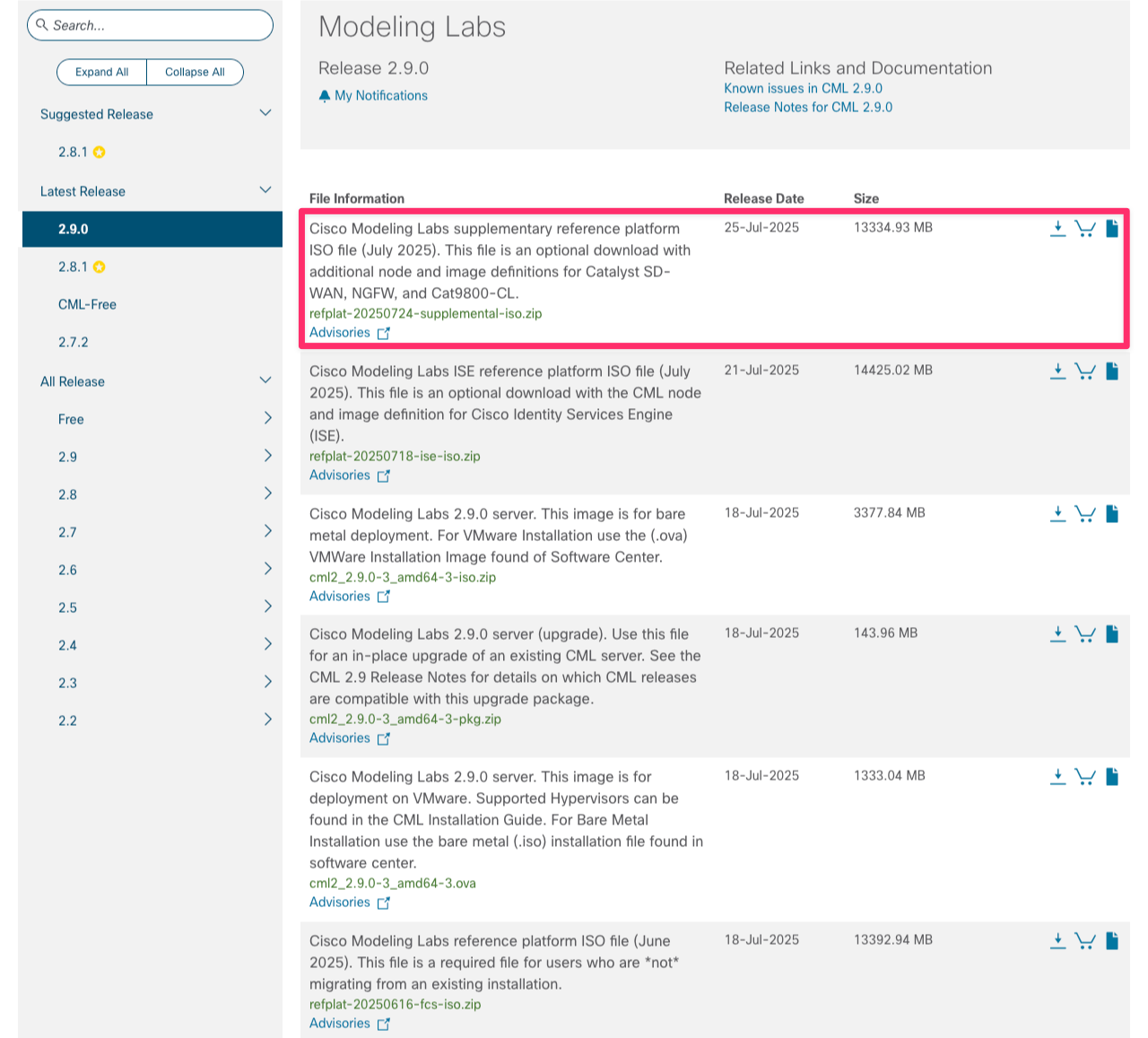

その後、改めてSupplemental ISOディスクが公開されていました。CML 2.9.0のダウンロードページから入手可能です。
| ファイル名 | ファイルサイズ | SHA512 |
|---|---|---|
refplat-20250724-supplemental-iso.zip |
約13GB | f4dc2dd2b5cdbb1fd6335290d69b8068b63a7ce8047ab3b672b3997d257a791d8a9102565fb54a1874cff078e6b1ad2d1e33615d4a76f7e8f2f7f49b8a43aaee |
refplat-20250718-supplemental.iso |
約15GB | f86799609add8bc5b13fc637db04242b9f02d7fce4c091190ede0d496badcbc4ca0e10e0717e007d4d2dfd059717225eef00670af8fbbb47192e46e526132edd |
refplat-20250718-supplemental.iso に含まれるファイル¶
refplat-20250718-supplemental.isoに含まれるファイルは以下でした。
├── node-definitions
│ ├── cat9800.yaml
│ ├── cat-sdwan-controller.yaml
│ ├── cat-sdwan-edge.yaml
│ ├── cat-sdwan-manager.yaml
│ ├── cat-sdwan-validator.yaml
│ ├── cat-sdwan-vedge.yaml
│ ├── fmcv.yaml
│ ├── ftdv.yaml
│ └── splunk.yaml
└── virl-base-images
├── cat9800-17-17-01
│ ├── C9800-CL-universalk9.17.17.01.qcow2
│ └── cat9800-17-17-01.yaml
├── cat-sdwan-controller-20-16-1
│ ├── cat-sdwan-controller-20-16-1.yaml
│ └── viptela-smart-20.16.1-genericx86-64.qcow2
├── cat-sdwan-edge-17-16-01a
│ ├── c8000v-universalk9_8G_serial.17.16.01a.qcow2
│ └── cat-sdwan-edge-17-16-01a.yaml
├── cat-sdwan-manager-20-16-1
│ ├── cat-sdwan-manager-20-16-1.yaml
│ └── viptela-vmanage-20.16.1-genericx86-64.qcow2
├── cat-sdwan-validator-20-16-1
│ ├── cat-sdwan-validator-20-16-1.yaml
│ └── viptela-bond-20.16.1-genericx86-64.qcow2
├── cat-sdwan-vedge-20-16-1
│ ├── cat-sdwan-vedge-20-16-1.yaml
│ └── viptela-bond-20.16.1-genericx86-64.qcow2
├── fmcv-7-7-0
│ ├── Cisco_Secure_FW_Mgmt_Center_Virtual_KVM-7.7.0-91.qcow2
│ └── fmcv-7-7-0.yaml
├── ftdv-7-7-0
│ ├── Cisco_Secure_Firewall_Threat_Defense_Virtual-7.7.0-89.qcow2
│ └── ftdv-7-7-0.yaml
└── splunk-9-4
├── splunk-9-4.tar.gz
└── splunk-9-4.yaml
Cockpitからファイルコピーした際のログ¶
CMLへrefplat-20250718-supplemental.isoをマウントし、Cockpitからコピーした際のログは以下の通りです。
*** Copy Refplat running at Sat Jul 26 07:11:11 UTC 2025
*** Found cdrom device /dev/disk/by-label/REFPLAT
*** Source resolved to /dev/sr0
*** Stopping CML services
*** Waiting for services to become inactive
still active...
*** Copying content of /dev/sr0 to /var/lib/libvirt/images (this may take a while)...
xorriso 1.5.6 : RockRidge filesystem manipulator, libburnia project.
Copying of file objects from ISO image to disk filesystem is: Enabled
xorriso : NOTE : Loading ISO image tree from LBA 0
xorriso : UPDATE : 38 nodes read in 1 seconds
Drive current: -indev 'stdio:/dev/sr0'
Drive access : shared:readonly
Media current: stdio file, overwriteable
Media status : is written , is appendable
Media summary: 1 session, 7648154 data blocks, 14.6g data, 320k free
Volume id : 'REFPLAT'
Added 139 exclusion list items from file '/dev/fd/63'
xorriso : UPDATE : 10 files restored ( 126.8m) in 1 seconds , 96.0xD
xorriso : UPDATE : 10 files restored ( 255.9m) in 2 seconds , 96.5xD
xorriso : UPDATE : 10 files restored ( 465.3m) in 3 seconds , 158.5xD
xorriso : UPDATE : 11 files restored ( 633.5m) in 4 seconds , 127.3xD
xorriso : UPDATE : 11 files restored ( 754.7m) in 5 seconds , 90.8xD
xorriso : UPDATE : 11 files restored ( 838.4m) in 6 seconds , 63.3xD
xorriso : UPDATE : 11 files restored (1053.1m) in 7 seconds , 155.4xD
xorriso : UPDATE : 11 files restored (1215.1m) in 8 seconds , 122.6xD
xorriso : UPDATE : 11 files restored (1383.5m) in 9 seconds , 127.5xD
xorriso : UPDATE : 11 files restored (1544.6m) in 10 seconds , 122.0xD
xorriso : UPDATE : 11 files restored (1556.0m) in 12 seconds , 5.2xD
xorriso : UPDATE : 11 files restored (1556.2m) in 13 seconds , 0.1xD
xorriso : UPDATE : 11 files restored (1557.1m) in 15 seconds , 0.4xD
xorriso : UPDATE : 11 files restored (1720.5m) in 16 seconds , 123.6xD
xorriso : UPDATE : 11 files restored (1889.5m) in 17 seconds , 127.9xD
xorriso : UPDATE : 11 files restored (2065.9m) in 18 seconds , 133.5xD
xorriso : UPDATE : 11 files restored (2198.2m) in 19 seconds , 98.5xD
xorriso : UPDATE : 14 files restored (2370.7m) in 20 seconds , 130.5xD
xorriso : UPDATE : 14 files restored (2550.2m) in 21 seconds , 135.9xD
xorriso : UPDATE : 14 files restored (2678.1m) in 22 seconds , 95.5xD
xorriso : UPDATE : 14 files restored (2870.4m) in 23 seconds , 145.5xD
xorriso : UPDATE : 14 files restored (3097.5m) in 24 seconds , 162.2xD
xorriso : UPDATE : 14 files restored (3233.9m) in 25 seconds , 103.2xD
xorriso : UPDATE : 14 files restored (3439.0m) in 26 seconds , 155.3xD
xorriso : UPDATE : 14 files restored (3648.9m) in 27 seconds , 158.9xD
xorriso : UPDATE : 14 files restored (3845.4m) in 28 seconds , 148.8xD
xorriso : UPDATE : 14 files restored (4045.7m) in 29 seconds , 151.6xD
xorriso : UPDATE : 14 files restored (4261.9m) in 30 seconds , 163.6xD
xorriso : UPDATE : 14 files restored (4446.2m) in 31 seconds , 139.5xD
xorriso : UPDATE : 14 files restored (4626.1m) in 32 seconds , 136.2xD
xorriso : UPDATE : 14 files restored (4824.0m) in 33 seconds , 149.7xD
xorriso : UPDATE : 14 files restored (4986.0m) in 34 seconds , 121.4xD
xorriso : UPDATE : 14 files restored (5098.4m) in 35 seconds , 85.0xD
xorriso : UPDATE : 14 files restored (5282.6m) in 36 seconds , 139.5xD
xorriso : UPDATE : 16 files restored (5490.2m) in 37 seconds , 157.2xD
xorriso : UPDATE : 16 files restored (5680.2m) in 38 seconds , 143.8xD
xorriso : UPDATE : 16 files restored (5823.2m) in 39 seconds , 108.0xD
xorriso : UPDATE : 16 files restored (5892.2m) in 40 seconds , 52.1xD
xorriso : UPDATE : 16 files restored (5948.1m) in 41 seconds , 42.3xD
xorriso : UPDATE : 19 files restored (6031.2m) in 42 seconds , 62.9xD
xorriso : UPDATE : 19 files restored (6250.2m) in 43 seconds , 165.7xD
xorriso : UPDATE : 19 files restored (6419.2m) in 44 seconds , 127.9xD
xorriso : UPDATE : 19 files restored (6478.3m) in 46 seconds , 20.4xD
xorriso : UPDATE : 19 files restored (6557.8m) in 47 seconds , 60.2xD
xorriso : UPDATE : 19 files restored (6790.2m) in 48 seconds , 175.9xD
xorriso : UPDATE : 19 files restored (6990.6m) in 49 seconds , 148.6xD
xorriso : UPDATE : 19 files restored (7075.7m) in 51 seconds , 30.7xD
xorriso : UPDATE : 19 files restored (7075.9m) in 54 seconds , 0.1xD
xorriso : UPDATE : 19 files restored (7076.2m) in 55 seconds , 0.2xD
xorriso : UPDATE : 19 files restored (7076.9m) in 57 seconds , 0.2xD
xorriso : UPDATE : 19 files restored (7077.7m) in 59 seconds , 0.3xD
xorriso : UPDATE : 19 files restored (7152.3m) in 60 seconds , 56.5xD
xorriso : UPDATE : 19 files restored (7360.2m) in 61 seconds , 157.3xD
xorriso : UPDATE : 19 files restored (7536.2m) in 62 seconds , 131.7xD
xorriso : UPDATE : 19 files restored (7731.3m) in 63 seconds , 147.6xD
xorriso : UPDATE : 19 files restored (7922.8m) in 64 seconds , 145.0xD
xorriso : UPDATE : 19 files restored (8068.6m) in 65 seconds , 110.0xD
xorriso : UPDATE : 19 files restored (8272.8m) in 66 seconds , 154.6xD
xorriso : UPDATE : 19 files restored (8449.3m) in 67 seconds , 129.7xD
xorriso : UPDATE : 19 files restored (8658.9m) in 68 seconds , 158.7xD
xorriso : UPDATE : 19 files restored (8865.9m) in 69 seconds , 156.6xD
xorriso : UPDATE : 19 files restored (8982.4m) in 72 seconds , 42.3xD
xorriso : UPDATE : 19 files restored (9070.4m) in 73 seconds , 66.6xD
xorriso : UPDATE : 19 files restored (9233.9m) in 74 seconds , 123.8xD
xorriso : UPDATE : 19 files restored (9452.7m) in 75 seconds , 165.5xD
xorriso : UPDATE : 21 files restored (9567.8m) in 76 seconds , 86.3xD
xorriso : UPDATE : 21 files restored (9573.9m) in 78 seconds , 2.1xD
xorriso : UPDATE : 21 files restored (9574.4m) in 79 seconds , 0.2xD
xorriso : UPDATE : 21 files restored (9575.2m) in 82 seconds , 0.2xD
xorriso : UPDATE : 21 files restored (9575.6m) in 84 seconds , 0.1xD
xorriso : UPDATE : 21 files restored (9575.7m) in 86 seconds , 0.1xD
xorriso : UPDATE : 21 files restored (9578.6m) in 87 seconds , 2.2xD
xorriso : UPDATE : 21 files restored (9689.8m) in 88 seconds , 84.2xD
xorriso : UPDATE : 21 files restored (9899.8m) in 89 seconds , 157.8xD
xorriso : UPDATE : 21 files restored ( 10059m) in 90 seconds , 120.4xD
xorriso : UPDATE : 21 files restored ( 10255m) in 91 seconds , 148.7xD
xorriso : UPDATE : 21 files restored ( 10471m) in 92 seconds , 161.1xD
xorriso : UPDATE : 21 files restored ( 10590m) in 93 seconds , 89.5xD
xorriso : UPDATE : 21 files restored ( 10711m) in 94 seconds , 91.9xD
xorriso : UPDATE : 21 files restored ( 10938m) in 95 seconds , 171.5xD
xorriso : UPDATE : 21 files restored ( 11111m) in 96 seconds , 131.6xD
xorriso : UPDATE : 21 files restored ( 11271m) in 97 seconds , 121.1xD
xorriso : UPDATE : 21 files restored ( 11469m) in 98 seconds , 149.3xD
xorriso : UPDATE : 21 files restored ( 11674m) in 99 seconds , 152.6xD
xorriso : UPDATE : 21 files restored ( 11896m) in 100 seconds , 168.1xD
xorriso : UPDATE : 24 files restored ( 12116m) in 101 seconds , 166.4xD
xorriso : UPDATE : 24 files restored ( 12291m) in 102 seconds , 132.8xD
xorriso : UPDATE : 24 files restored ( 12463m) in 103 seconds , 128.8xD
xorriso : UPDATE : 24 files restored ( 12667m) in 104 seconds , 147.8xD
xorriso : UPDATE : 24 files restored ( 12856m) in 105 seconds , 143.3xD
xorriso : UPDATE : 24 files restored ( 13065m) in 106 seconds , 158.6xD
xorriso : UPDATE : 24 files restored ( 13152m) in 107 seconds , 49.0xD
xorriso : UPDATE : 24 files restored ( 13153m) in 109 seconds , 0.8xD
xorriso : UPDATE : 24 files restored ( 13157m) in 110 seconds , 2.5xD
xorriso : UPDATE : 24 files restored ( 13157m) in 111 seconds , 0.1xD
xorriso : UPDATE : 24 files restored ( 13158m) in 113 seconds , 0.3xD
xorriso : UPDATE : 24 files restored ( 13158m) in 115 seconds , 0.0xD
xorriso : UPDATE : 24 files restored ( 13189m) in 116 seconds , 22.9xD
xorriso : UPDATE : 24 files restored ( 13358m) in 117 seconds , 127.9xD
xorriso : UPDATE : 24 files restored ( 13541m) in 118 seconds , 138.1xD
xorriso : UPDATE : 27 files restored ( 13746m) in 119 seconds , 154.9xD
xorriso : UPDATE : 27 files restored ( 13976m) in 120 seconds , 174.7xD
xorriso : UPDATE : 27 files restored ( 14188m) in 121 seconds , 160.2xD
xorriso : UPDATE : 27 files restored ( 14348m) in 122 seconds , 120.7xD
xorriso : UPDATE : 27 files restored ( 14509m) in 123 seconds , 122.2xD
xorriso : UPDATE : 27 files restored ( 14713m) in 124 seconds , 154.7xD
xorriso : UPDATE : 27 files restored ( 14873m) in 125 seconds , 120.1xD
xorriso : UPDATE : 29 files restored ( 14938m) in 125 seconds = 90.2xD
Extracted from ISO image: file '/'='/var/lib/libvirt/images'
changed ownership of '/var/lib/libvirt/images/virl-base-images/cat-sdwan-controller-20-16-1/viptela-smart-20.16.1-genericx86-64.qcow2' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/cat-sdwan-controller-20-16-1/cat-sdwan-controller-20-16-1.yaml' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/ftdv-7-7-0/Cisco_Secure_Firewall_Threat_Defense_Virtual-7.7.0-89.qcow2' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/ftdv-7-7-0/ftdv-7-7-0.yaml' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/ftdv-7-7-0' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/cat-sdwan-vedge-20-16-1/viptela-bond-20.16.1-genericx86-64.qcow2' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/cat-sdwan-vedge-20-16-1/cat-sdwan-vedge-20-16-1.yaml' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/cat-sdwan-manager-20-16-1/viptela-vmanage-20.16.1-genericx86-64.qcow2' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/cat-sdwan-manager-20-16-1/cat-sdwan-manager-20-16-1.yaml' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/cat-sdwan-validator-20-16-1/cat-sdwan-validator-20-16-1.yaml' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/cat9800-17-17-01/cat9800-17-17-01.yaml' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/cat9800-17-17-01/C9800-CL-universalk9.17.17.01.qcow2' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/cat-sdwan-edge-17-16-01a/c8000v-universalk9_8G_serial.17.16.01a.qcow2' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/cat-sdwan-edge-17-16-01a/cat-sdwan-edge-17-16-01a.yaml' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/splunk-9-4/splunk-9-4.yaml' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/splunk-9-4/splunk-9-4.tar.gz' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/splunk-9-4' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/fmcv-7-7-0/fmcv-7-7-0.yaml' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/virl-base-images/fmcv-7-7-0/Cisco_Secure_FW_Mgmt_Center_Virtual_KVM-7.7.0-91.qcow2' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/node-definitions/splunk.yaml' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/node-definitions/iol-xe.yaml.rej' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/node-definitions/ftdv.yaml' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/node-definitions/cat-sdwan-vedge.yaml' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/node-definitions/fmcv.yaml' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/node-definitions/ioll2-xe.yaml.rej' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/node-definitions/cat9000v-q200.yaml.rej' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/node-definitions/cat-sdwan-controller.yaml' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/node-definitions/cat-sdwan-validator.yaml' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/node-definitions/cat9000v-uadp.yaml.rej' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/node-definitions/cat-sdwan-manager.yaml' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/node-definitions/cat9800.yaml' from root:root to libvirt-qemu:virl2
changed ownership of '/var/lib/libvirt/images/node-definitions/cat-sdwan-edge.yaml' from root:root to libvirt-qemu:virl2
mode of '/var/lib/libvirt/images/node-definitions/iol-xe.yaml.rej' changed from 0644 (rw-r--r--) to 0664 (rw-rw-r--)
mode of '/var/lib/libvirt/images/node-definitions/ioll2-xe.yaml.rej' changed from 0644 (rw-r--r--) to 0664 (rw-rw-r--)
mode of '/var/lib/libvirt/images/node-definitions/cat9000v-q200.yaml.rej' changed from 0644 (rw-r--r--) to 0664 (rw-rw-r--)
mode of '/var/lib/libvirt/images/node-definitions/cat9000v-uadp.yaml.rej' changed from 0644 (rw-r--r--) to 0664 (rw-rw-r--)
*** Copying completed
*** Restarting controller to reload images into CML2 controller...
*** Starting CML services
*** Ejecting /dev/sr0...
*** Exiting with code 0
